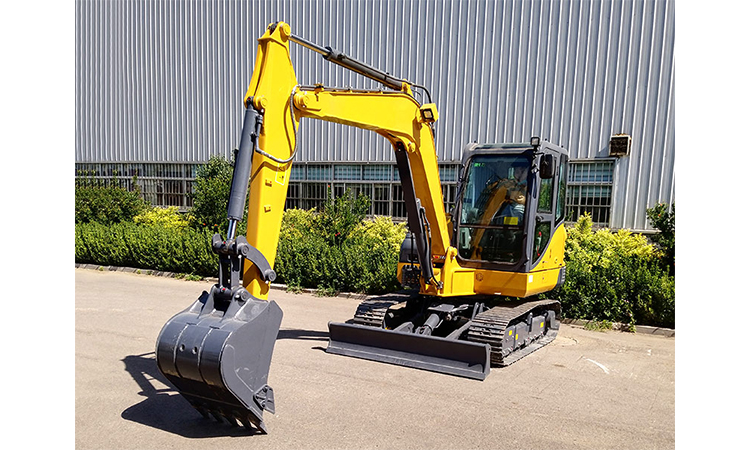

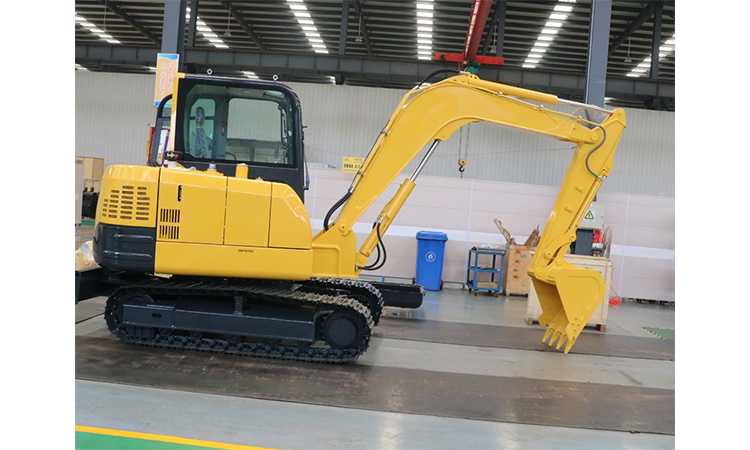

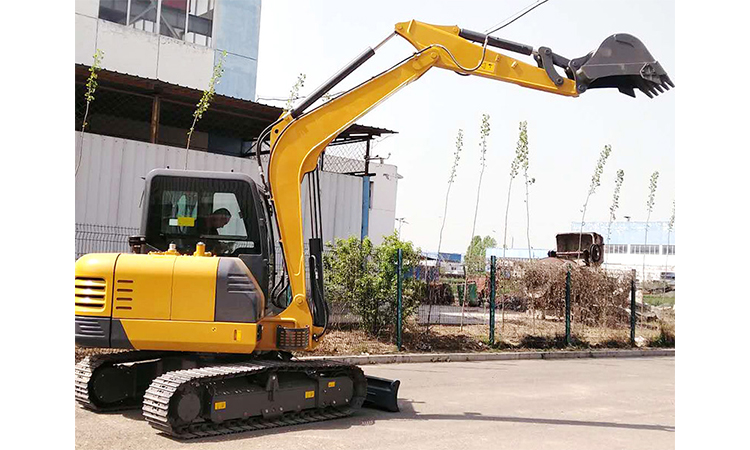

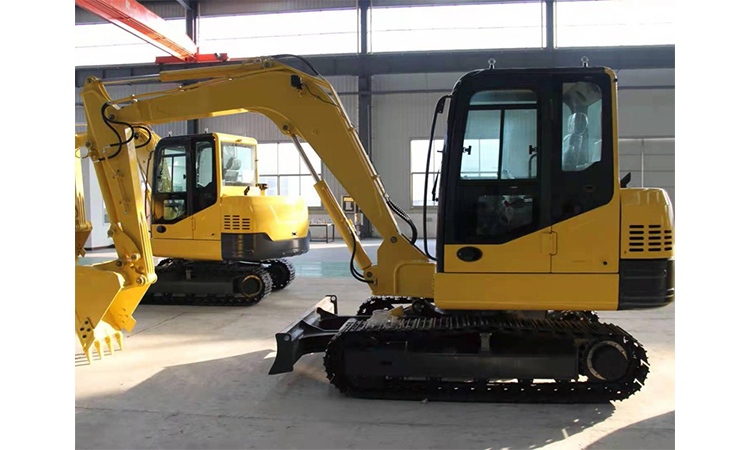

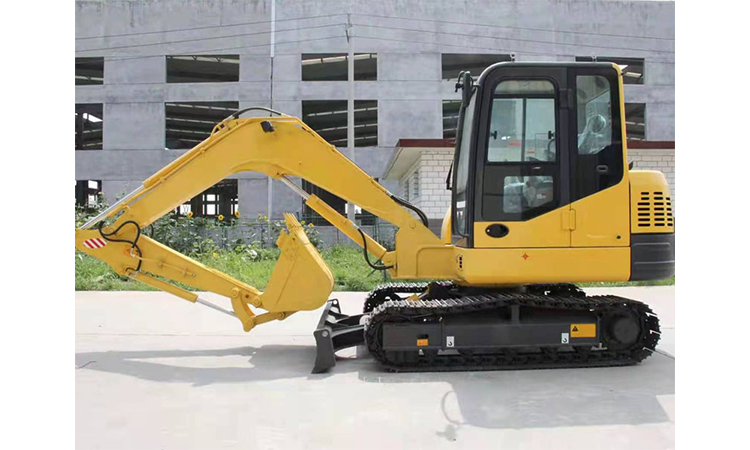

E.P Brand 6.0 Ton small excavation MY60 excavator mini
E.P Brand 6.0 Ton small excavation MY60 excavator mini
/ Brand:E.P / / Bucket capacity:0.22m³ / / Overall weight:5850kg / / Bucket Digging Force:38.5kn /
| Specifications Of Performance | |||
| Operation Weight | 5850kg | Climbing Ability | 70% |
|---|---|---|---|
| Bucket Capacity | 0.22m³ | Bucket Digging Force | 38.5kn |
| Travel Speed | 4.2/2.2km/h | Rotation Speed | 9.5r/min |
| Hydraulic Oil Tank Capacity | 80L | ||
| Track Length | 2560mm | Boom Length | 3000mm |
| Main Dimension | |||
| Operation Weight | 5850kg | Total Length Of Track | 2560mm |
| Counterweight Ground Clearance | 700mm | Transport Distance | 5960mm |
| Overall Height | 2690mm | Boom Length | 3000mm |
| Bucket Stick Length | 1630mm | Min Ground Clearance | 360mm |
| Track Length | 2560mm | ||
| Operating Range | |||
| Max Digging Height | 5750mm | Max Dumping Height | 3980mm |
| Max Digging Depth | 3860mm | Rear Turning Radius | 1700mm |
| Counterweight Height | 1685mm | ||
Hydraulic Valve
Piston Pump
Motor
- According To Customer Requirements, Engines Can Be Customized To Meet Different Operational Requirements Of Customers
- Customize A Complete Set Of Well-Known European Brand Hydraulic Systems To Ensure High Reliability Of The Hydraulic System
- Newly Designed Robust Structural Components With Longer Service Life
dynamical system
KOOP Engine
The MY60 small excavator is equipped with a 13.7kw koop engine, which has strong power and can ensure the reliability of the machine in harsh working conditions.
Kubota Engine
Equipped with a Kubota engine, with a power of up to 15.4kW, ensuring strong power output and reliability and durability.
Changchai Engine
Strong power, fuel economy, high reliability, environmental protection, energy-saving, and wide adaptability, it is an important component of the MY28 small excavator.
On July 25，Yuan Jiajian, the Secretary of Anyang Municipal Committee and Director of the Management Committee of Anyang Economic Development Zone etc leaders visited E.P Machinery workshop to inspect and guide the work, and E.P Group Chairman, workshop director, chief engineer and other personnel participated in the reception work.
The 1.5 ton small mini excavator is often called the "little cutie" on the construction site. It can easily enter various small construction environments on the construction site and efficiently complete various basic operations such as wall scraping, trenching, mixing, and crushing.
First, use a ripper to excavate and loosen the soil, peel off the soil layer and weathered stone layer, and then use a quick connector to change the bucket to excavate and load the soil, which greatly improves the construction efficiency.
Mini excavator has shown its practical value in many aspects.
For example, when excavating in a small space, due to its small size and high flexibility, it can easily complete the excavation task.
For another example, the low noise design of the mini excavator enables it to work quietly in the city without affecting the surrounding residents.
