Standard hydraulic lock
to add hydraulic locks of boom swing and dozer blade,to strengthen holding function of wording drivides
Chinese Mini Excavator Manufacturer E. P Machinery Company
Monday - Saturday 8:30AM - 5:30PM
Welcome To Inquire Tel\WhatsApp: +86136 7336 1755
Single Service

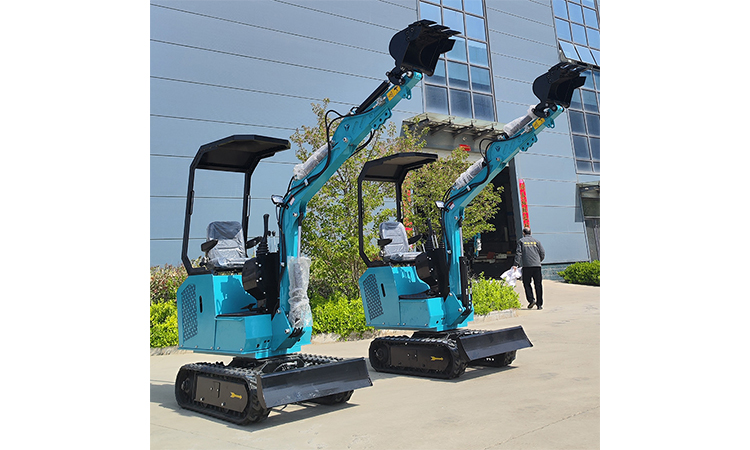

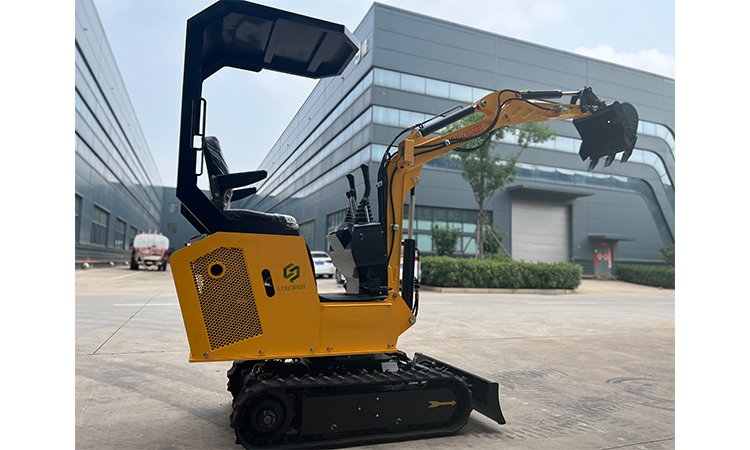

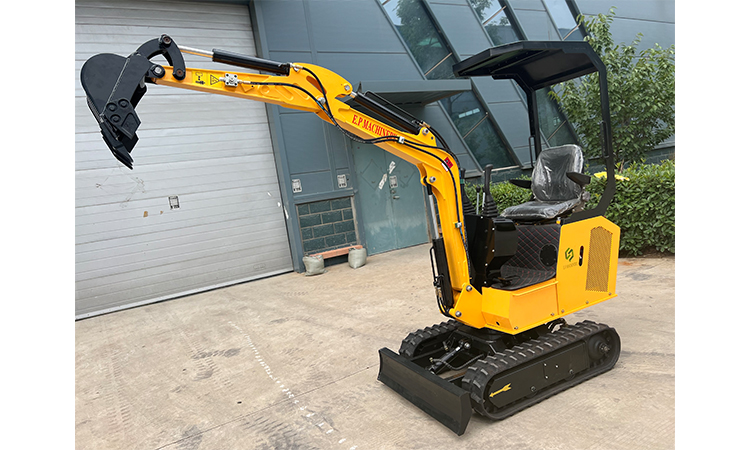

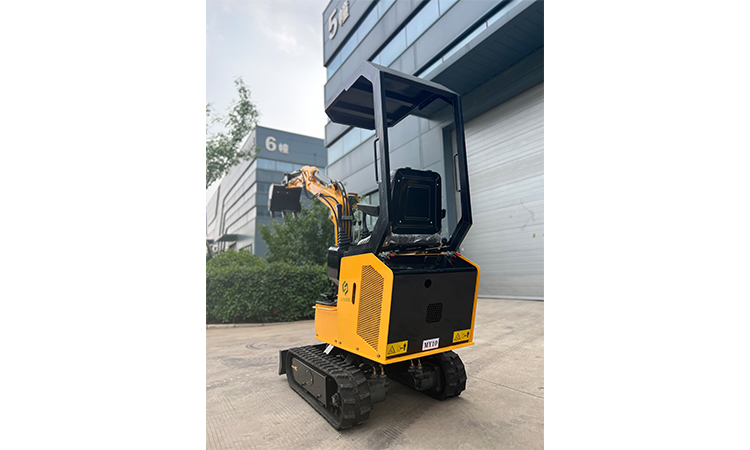

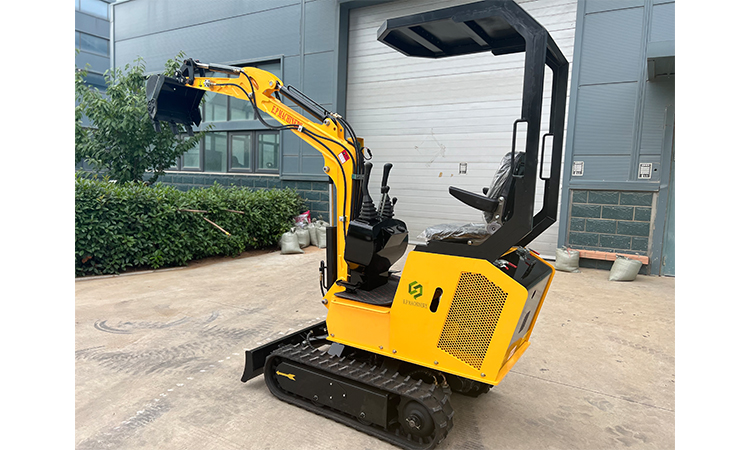

E.P Brand 1 Ton Mini Excavator MY10A Saving Energy Compact Small Digger Machine
E.P Brand 1 Ton Mini Excavator MY10A Saving Energy Compact Small Digger Machine
/ Brand:E.P / / bucket capacity:0.025m³ / / power:12HP / / Overall weight:1000kg /
One click electric start, equipped with throttle control, work schedule, light control, pressure reducing valve and other devices, easy to operate
| Specifications | Overall weight 1000kg |
Bucket Capacity 0.025m³ |
|---|---|---|
| Performance | Bucket Width 400mm |
Pump Type Single Gear Pump |
| Travel Speed 1.5km/h |
Bucket digging force 16.6kN |
|
| Stick digging force 10kN |
Walking speed 4.0/2.7km/h |
|
| Walking part | track-width 180mm |
Max Digging Height 2640mm |
| Max Digging Depth 1640mm |
||
| engine | model Koop 192 F |
rated power 12HP(3600 R/Min) |
Due to the continuous updating and progress of technology, any differences in technical parameters and configurations between the actual product and the actual product shall be subject to the actual product delivered; Additionally, the machine in the picture may include additional equipment.
upgrades of Teeth Buckets & Boom Cylinders
teeth buckets installed by a horizontal pin for easy disassembly. to enlarge boom cylinders diameter to increase lifting power.
MY10A Multifaceted Expert
Deflectable device
The range of the deflectable working device is 625mm to the left and 400mm to the right. Both sides can easily dig to the outer edge of the track, and can work in narrow spaces with limited space such as walls and corners.
Telescopic walking frame
The adjustable width range of the retractable walking frame is 980mm~1350mm, which improves the stability of the entire machine and meets various working conditions.
- Financial Responsibility to Our Clients
- Superior Quality and Craftsmanship
- Quality and Value to the Projects We Deliver
- Highest Standards in Cost Control
Rotating bulldozer
The rotary plug-in bulldozer ensures passability, making it easy for the excavator to pass through less than 1m of working space and improving work efficiency.
MY10A small excavator is mainly suitable for
Broken road surface, Narrow bucket construction, Trench excavation,soil improvement, etc
Broken road surface, Narrow bucket construction, Trench excavation,soil improvement, etc
Dynamical system
The MY10A small excavator adopts a customized brand engine with strong power, reliability, and durability, meeting the diverse needs of customers
Adopting a high-precision oil-water separator with a filter element, it can separate water while highly filtering impurities in the fuel, providing multiple protections for the engine and extending its service life

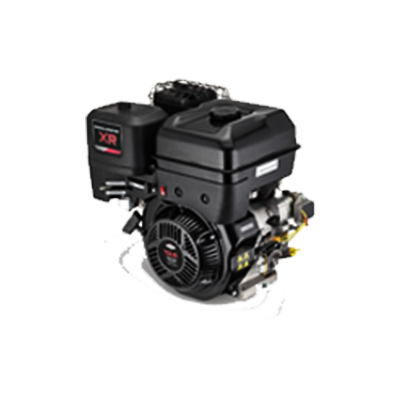

Gasoline Engine
Strong power, fuel economy, high reliability, environmental protection, energy-saving, and wide adaptability, it is an important component of the MY10A small excavator.

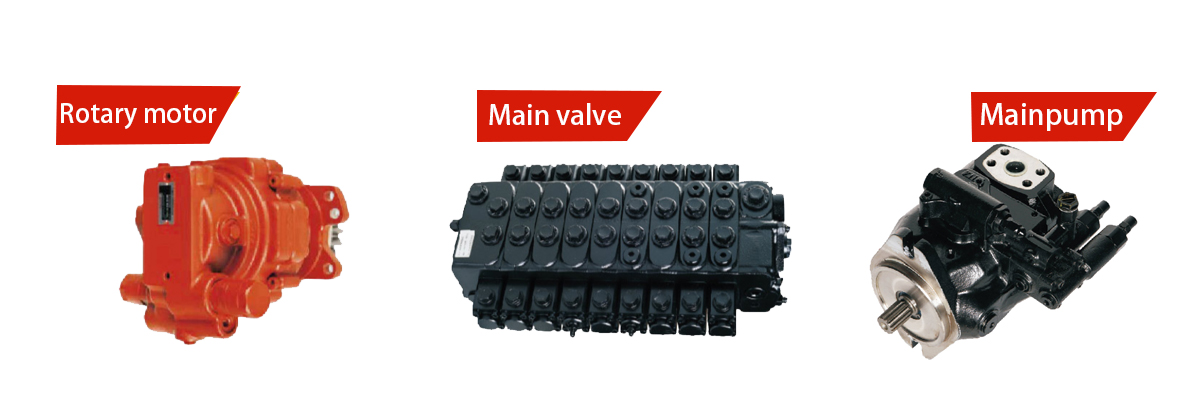

Hydraulic system
Equipped with a well-known brand pump valve system, it has high reliability, low pressure loss, and smooth composite action
